36v 800w Brushed Speed Motor and Controller Set for Electric Scooter Go Kart Bicycle e Bike Tricycle Moped

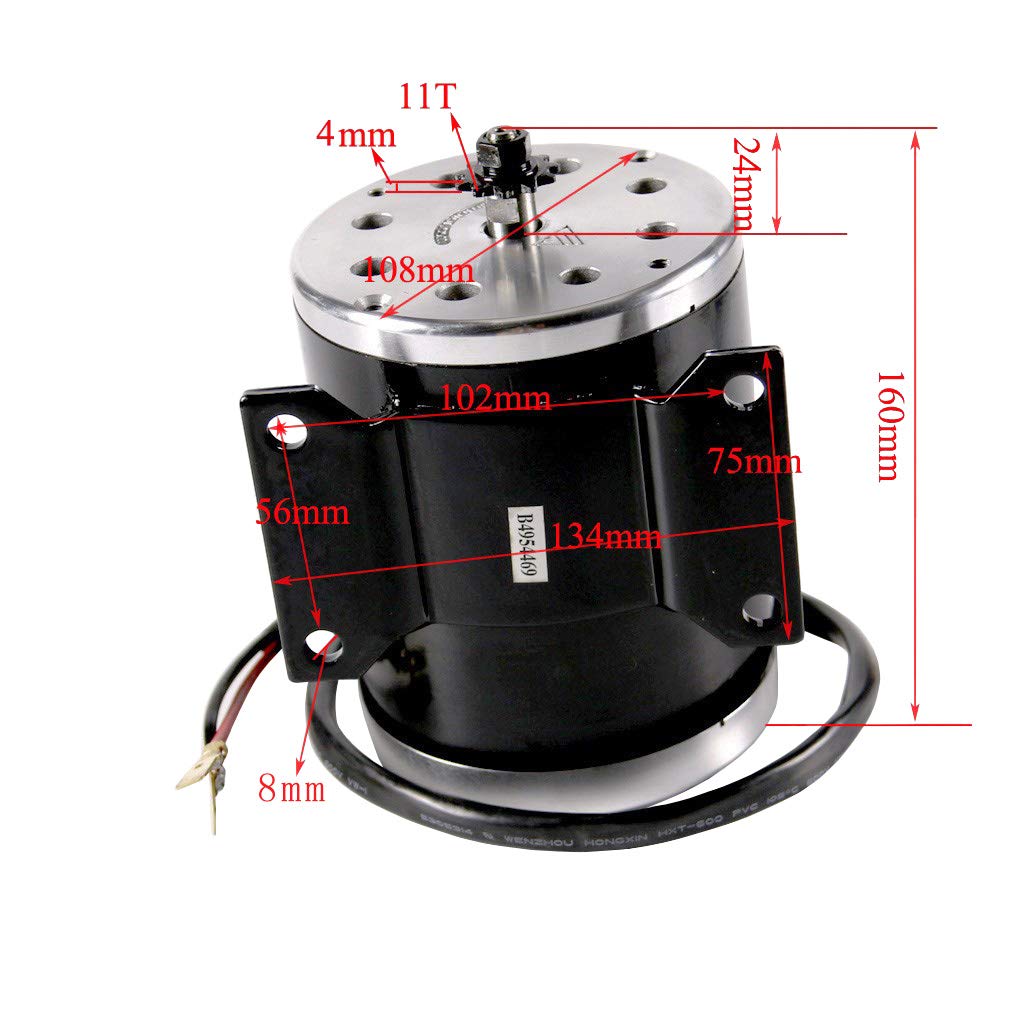

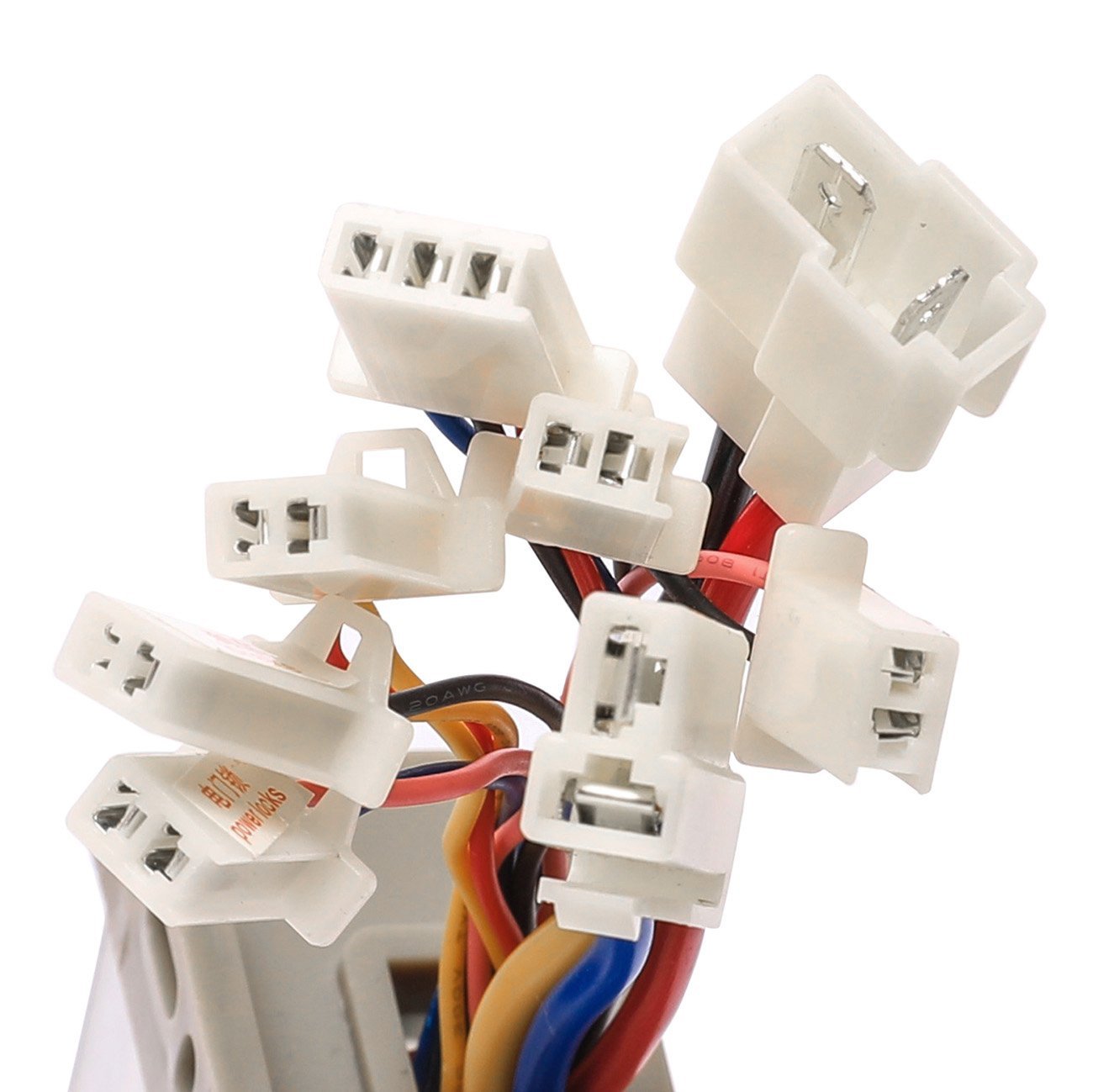

Specifications:Motor:Output: 800WRated speed: 2755-3045 RPMRated current: 27AMotor weight: 9.9lbsRated torque: ≥2.3N.mHorsepower: 1.1HPNo-load current: ≤2.6ARated voltage: 36V DCRated current: 29.2APeak efficiency at 36V: 78 percentReversible: (w/ polarity swap)Sprocket：11 tooth sprocket for #25H chainNote: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Controller:Rated voltage: 36V DCConversion efficency: 95% Under Voltage Protection: 31.5±0.5VSpeed regulator (throttle): 1-4 VController Wiring:This controller has 8 connectors, compatible with many 36V bikes with up to 800W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

• This is a set of reliable universal 36VDC 800w brushed electric motor & controller
• Rated speed: 2750 RPM, Sprocket：11 tooth sprocket for #25H chain, Horsepower: 1.1HP
• Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes
• Refer to picture and below "Product Description" for wiring instruction and specifications
• Package includes: 1x Motor + 1x Controller.
