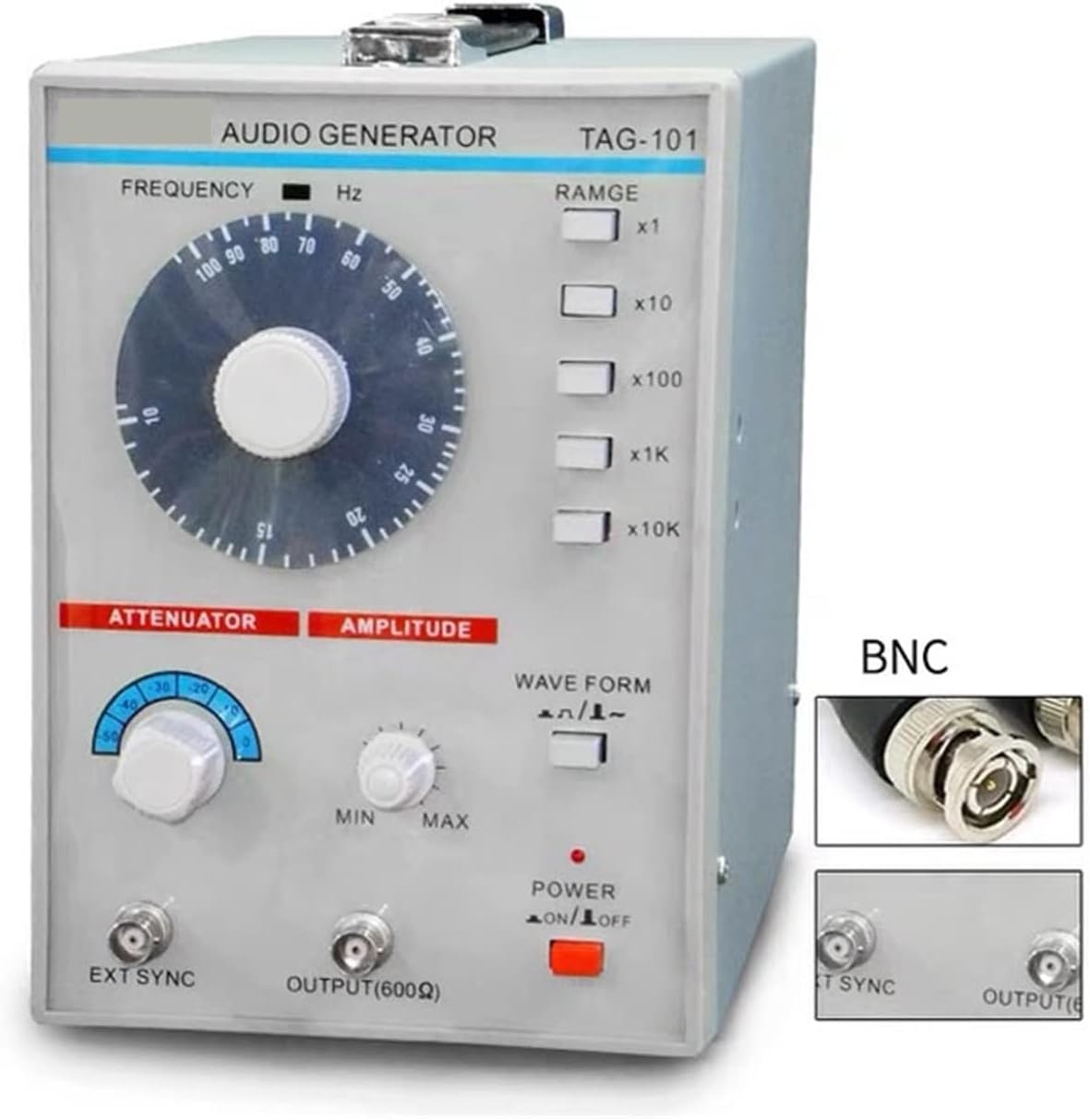

TAG-101 Low Frequency Signal Generator Source 10Hz-1MHz with High Efficiency
Product details
| Management number | 211160372 | Release Date | 2026/04/04 | List Price | $99.29 | Model Number | 211160372 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Low Frequency Signal Generator, Instrument Parts & Accessories, Measurement & Analysis Instruments, Toolsspecification:Frequency range: 10 Hz-1 MHz, 5 filesAccuracy: ±5% of full scaleOutput impedance: 60050: minus 50 dB, can be fine-tunedSine wave output:1 output voltage: 5-6 V RMS2. Distortion rate: 500 Hz--50 KHz not more than 0.05%50 Hz-500 KHz not more than 0.5%3. Output smoothness: 1 KHz reference ±1.5 dBSquare wave output:1. Range: 10 Hz - - 1 M Hz2. Output level: 10 V peak3. Rise time: 0.5 microsecondsSynchronization performance:1. Range: each input 1 V voltage can change the oscillation frequency by 1%2. Input impedance: 10KPower supply: AC 110 V / 220 V; 50/60 Hz, 8W.include:1 set of signal generator
- The TAG-101 low frequency signal generator can generate signals from 10 Hz to 1 M Hz, and the output distortion is very small.
- The output voltage gradually attenuates from 0 dB to 60 dB and gradually attenuates to 10 dB.
- As a signal source, it is welcomed by production lines, amateurs, maintenance, etc.
- At the same time, the output signal is synchronized with the terminal, and the control signal can accurately control the smallest strong signal.
| Size | One Size |
|---|---|
| Color | One Color |
| Item Weight | 8.82 pounds |
| Part Number | LJIA |
| Manufacturer | LJIA |
| Power Source | ac |
| Number Of Pieces | 1 |
| Item model number | LJIA |
| Batteries Required | No |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Item Package Quantity | 1 |
