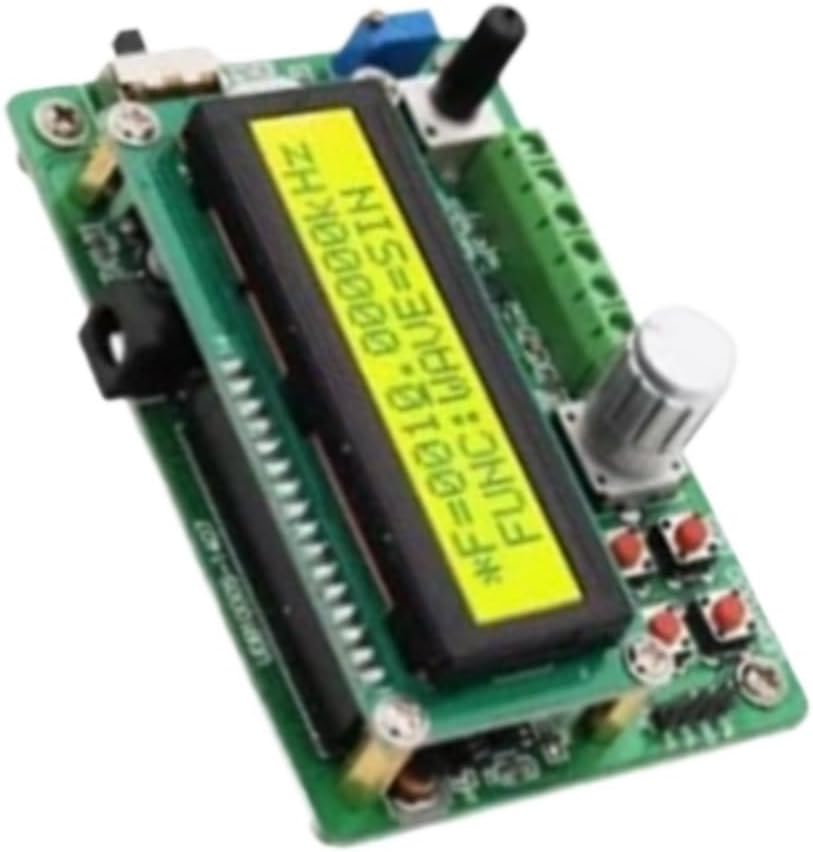

UDB1005S Signal Generator with Frequency Table for Function Signal Source

Product Overview The UDB-100 xS series is a signal generator based on direct digital synthetic technology (DDS), which is an FPGA design that is easy to use, uses DC 5V power supply, and can output a wide variety of functions such as sine waves, waves, triangular, and serrated waves, while integrating TTL synchronous output and 60 frequency meters, including electronic engineers, laboratories. and education, science research It is an ideal equipment and can also be used as an accessory module for industrial equipment. 1. Signal surface: Sine wave, wave (adjustable duty ratio), triangular wave, raising serrated wave, pulse wave, TTL digital signal;2, Square-wave duty cycle 1%-99% continuous adjustment; 2. Measuring surface: The instrument has frequency measurement and counting functions. 3. Scanning surface: SWEE P scanning function, can realize frequency search; 4. Memory and Calling Function: 10 sets of parameter memory function, M 0 to M 9. Turn on the power and call the M 0 position parameters automatically. 1 LCD display 2 DC 5V Power Connector 3 Power Switch 4 Bias Adjustment Potentiometers 5. Amplitude adjustment potentiometer. 6 waveform output 7 GND (Earth) 8. External frequency measurement input terminals. 9 TTL digital signal output 10.5V DC signal output. 11. Digital knob 12 keys 13 communication interfacesmeasurement input terminals. 9 TTL digital signal output 10.5V DC signal output. 11. Digital knob 12 keys 13 communication interfaces

• External frequency measurement input terminal
• LCD Display
• DC 5V Power Connector
• TTL digital signal output
